ماژول مبدل جریان به ولتاژ
- دستهبندی: ماژول تغذیه,ولتاژ
- کد محصول: TS19487
- امتیاز محصول: 700
- موجود درانبار: موجود
- ۸۲۹,۲۵۰ ریال ۷۷۵,۰۰۰ ریال
ماژول مبدل ولتاژ 0-20 /4-20 میلی آمپر به ولتاژ

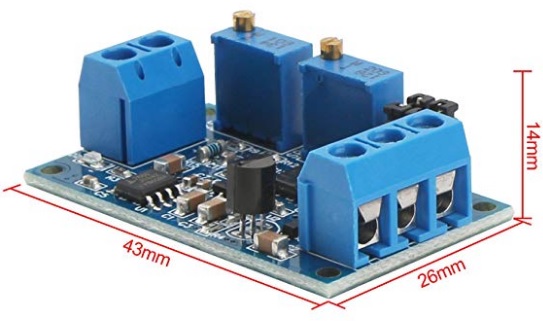

برای مشاهده ابعاد ماژول مبدل جریان به ولتاژ به عکس زیر توجه نمایید:

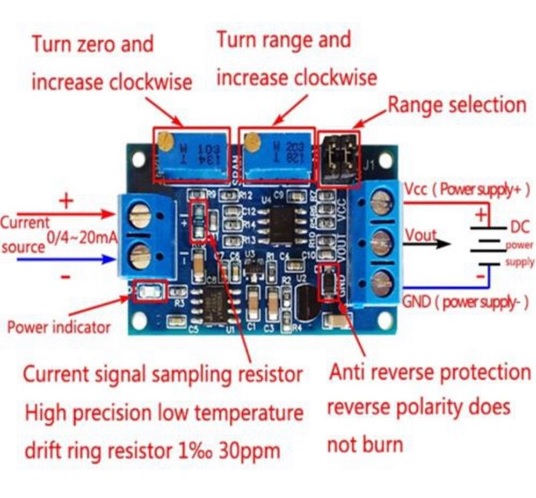

برای مشاهده ورودی خروجی های ماژول مبدل جریان به ولتاژ به تصویر زیر مراجعه نمایید:
Current to Voltage Converter Module Amp to Volt 0/4-20mA to 0-3.3V 0-5V 0-10V Voltage Transmitter Signal Converter Board
- This module is designed for that voltage signal will become weaker with the increase of transmission distance through the process of circuit signal transmission, this module can avoid it.
- DROK voltage transmitter will be powered by 7-36V, current input range is 4-20mA/0-20mA, voltage output range is 0-3.3V/0-5V/0-10V.
- Zero and full range can be adjusted as your needs; the module is with high stability, good linearity, industrial grade.
- The current signal sampling resistor using high-precision color ring resistance, offers high accuracy, small temperature drift and high power.
- DROK signal converter is designed with reverse connection protection, if wires connect reversely, it will protect the module from burning.
- Product Description:
In the process of circuit signal transmission, the voltage signal will increase with the transmission distance becomes weak, the use of current transmission can avoid the signal weakening. This module is used for the end of the current signal transmission, the signal into a voltage signal for single-chip detection. Current input support 4-20Ma, 0-20mA, voltage output support 0-3.3V 0-5V 0-10V.Product Highlights:
Wide supply voltage range, the output voltage to support multiple ranges;
Zero and range can be adjusted;
High stability, good linearity, industrial grade;
Current signal sampling high precision resistor, high precision, small temperature drift, high power.Instructions for use:
1. The module according to the definition of wiring, power supply voltage 7-36V (if the output to 10V, the supply voltage must be greater than 12V)
2. After power-up, the D2 indicator should be on, otherwise, check the line connection. Board with reverse protection, the reverse does not burn.
3. When the current input is the minimum (0mA or 4mA), adjust the ZERO potentiometer so that the VOUT output is the minimum (0.0V or other voltage)
4. When the current input is at maximum (20mA), adjust the SPAN potentiometer so that the VOUT output is the maximum (3.3V or 5V or 10V, the output can be as low as 2.5V when the input is 4-20ma).
According to your needs, through the jumper cap to select the appropriate range:
4–20ma: 0-2.5V range: J1 1,2 Jumper short, 3,4 Jumper short
0 – 3.3V range: J1 1,2 Jumper Open, 3,4 Jumper Open
0 – 5.0V range: J1 1,2 Jumper short, 3,4 Jumper short
0–10.0V range: J1 1,2 Jumper short, 3,4 Jumper Open
0–20ma: 0–3.3V range: J1 1,2 Jumper short, 3,4 Jumper Closed
0 – 5.0V range: J1 1,2 Jumper Closed, 3,4 Jumper Closed
0–10.0V range: J1 1,2 Jumper Closed, 3,4 Jumper Open
