ماژول محافظ شارژ باتری لیتیومی 3 سل 10A
- دستهبندی: شارژ - دشارژ
- کد محصول: TS20139
- امتیاز محصول: 700
- موجود درانبار: موجود
- ۴۷۲,۹۴۰ ریال ۴۴۲,۰۰۰ ریال
ماژول شارژر و محافظ Overcharge و Discharge باتری های لیتیومی 3 تایی سری شده با ماکزیمم جریان 10 آمپر , با استفاده از این ماژول می توانید برای سه عدد باتری 18650 لپ تاپی که با هم سری شده باشد استفاده می شود. بعد از اتصال این باتری ها به برد باید ولتاژ 12.6 برای شارژ این باتری ها به برد اعمال شود.

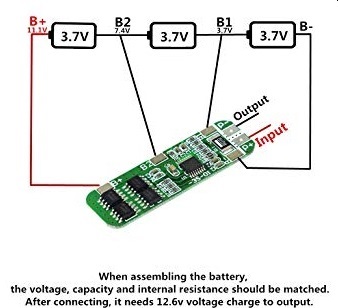

برای مشاهده نحوه اتصال برد بالانسر به باتری سه سل به تصویر زیر مراجعه نمایید:
In 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module, 3S stands for 3 18650 batteries or polymer lithium battery series combination. With 10.8V rated voltage for polymer battery, 11.1V 18650 or 3.7V lithium battery rated voltage and 12.6V lithium battery can be charged. And discharge 10A (referring to the maximum discharge current limit) Lithium battery protection board it also Comes with over-charge, over-discharge, over-current, short circuit protection.
formula expansion :
1C battery expansion, 2000 capacity is equal to 2AH * 1 = 2A upper limit of current.
3C battery expansion, 2000 capacity equal to 2AH * 3 = 6A upper operating current.
If the battery gets heat, does not apply that battery, such a situation cannot be long-term use, the battery will soon be damaged.
Notes :
1: strictly according to the drawing wiring 0 V (B), 3.7 V (B1), 7.4 V (B2), 11.1 V (B +), not intentionally short circuit!
2: Once you have charged the first line, it will have output.
3: When connecting three battery groups, please make sure that the voltage of each battery group, if not the same, fill each battery separately and then use it in series. discharge test, the fastest battery voltage drop, which group is low battery. (2 good battery + a use effect = 3 low battery low battery use effect).
Warning:
The protection board can not be used for lithium iron phosphate batteries, lamp hernia, hand drill battery, electric battery fish, electric bicycle battery, car battery for children, 775 (4A) motor, 1 W fish eye LED light, please pay attention customer purchase connection! Described in terms of power for the following products: Massager rechargeable battery, LED ready light power supply, 12 V electronic products, solar street lamp battery, power backup monitor, and other products.
برای خرید ماژول محافظ شارژ باتری لیتیومی 3 سل 10A به صورت اینترنتی می توانید از همین صفحه اقدام نمایید.
حسین تمیمی | ۱۳۹۸/۰۶/۲۰ ۱۱:۵۶:۱۵ |
باسلام |
|
حسین تمیمی | ۱۳۹۸/۰۶/۲۰ ۱۱:۵۸:۵۴ |
آیا ولتاژ ورودی مدار 12ولت میباشد؟ |
|
مدیر وبسایت | ۱۳۹۸/۰۶/۲۱ ۱۲:۱۴:۲۱ |
سلام بله این ماژول برای شارژ و دشارژ سه باتری 18650 سری شده به کار می رود , برای شارژ این پک 12.6 ولت باید به این مدار ولتاژ داد. |
|
محمد رضا | ۱۳۹۹/۰۳/۲۰ ۱۲:۲۶:۵۸ |
سلام. |
|
محمد رضا | ۱۳۹۹/۰۳/۲۱ ۰۳:۳۵:۳۱ |
لطفاً جواب بدین ضروریه |
|
مدیر وبسایت | ۱۳۹۹/۰۳/۲۱ ۰۴:۰۳:۰۶ |
سلام در توضیحات محصول نقشه اتصال باتری ها به برد وجود دارد. نقاط b1 و b2 بین باتری های سری شده و نقاط + و - ابتدا و انتهای باتری های سری شده متصل می شود |
