A6052
- دستهبندی: تغذیه سوئیچینگ
- کد محصول: TS15983
- امتیاز محصول: 700
- موجود درانبار: موجود
- ۱,۲۲۳,۴۹۲ ریال ۱,۱۴۳,۴۵۰ ریال
-
محصول شامل دیتاشیت میباشد.
Current Mode Control PWM Regulator IC For Switching Power Supplies
آی سی A6052 یا STRA6052 از سری آی سی های A6000 می باشد که در تغذیه های سوئیچینگ کاربرد دارد. این آی سی های قدرت با مد کنترل جریانی PWM کار می کنند. فرکانس سوئیچ این آی سی 67KHz است و حداکثر جریان درین ماسفت این آی سی 3A می باشد. از ویژگی های این آی سی مدار محافظت در برابر جریان بیش از حد محافظت در برابر اضافه بار و محافظت در برابر ولتاژ بیش از حد، حفاظت گرمایی و... می باشد.

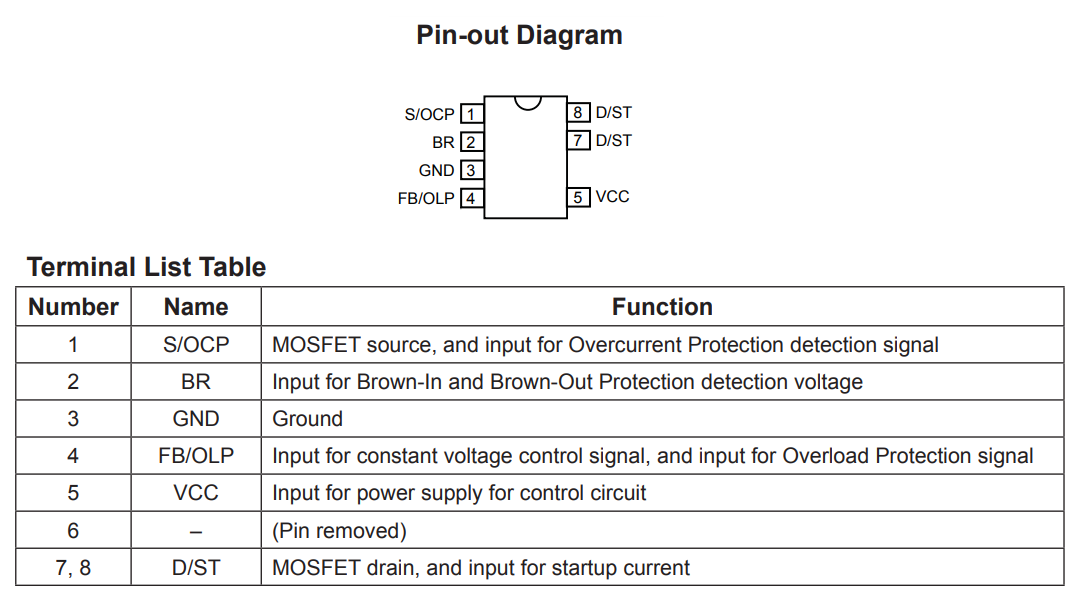

برای مشاهده پایه های آی سی STRA6052 به تصویر زیر مراجعه کنید:

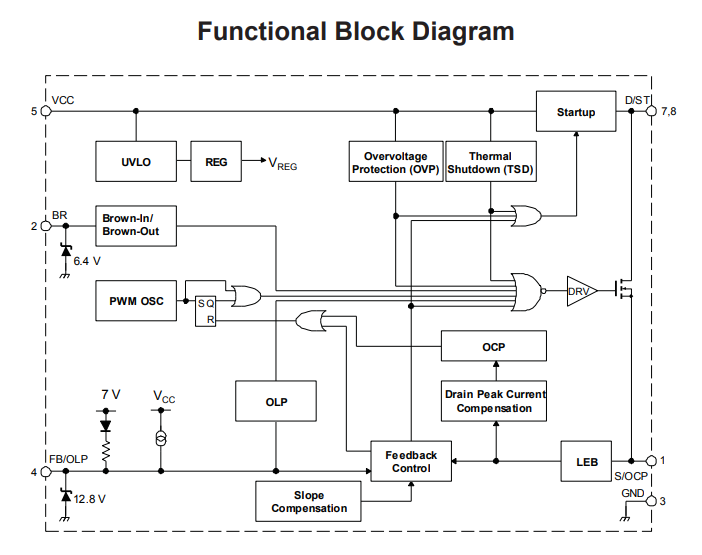

برای مشاهده ساختار داخلی آی سی STRA6052 به تصویر زیر مراجعه کنید:
Features and Benefits
- Small DIP8 package with 8 to 24 W power output 230 VAC
- Current Mode PWM control with 67 kHz switching frequency
- Built-in Random Switching function, reducing EMI noise, and simplifying EMI filters, and therefore reducing cost
- Built-in Slope Compensation function, avoiding subharmonic oscillation
- Built-in Auto Standby function (Input Power, PIN < 25 mW at no load) ▫ Normal operation: PWM mode ▫ Light load operation: Standby mode (burst oscillation)
- Built-in Audible Noise Suppression function during Standby mode
- Built-in Startup Circuit, reducing power consumption in standby operation, and eliminating external components.
- Bias-Assist function, improving startup operation, suppressing VCC voltage drop in operation, and allowing use of smaller VCC capacitor
- Built-in Leading Edge Blanking function
- Built-in High Speed Latch Release function, releasing the latch shutdown immediately at turning off AC supply
- Two-chip structure, with a controller and a power MOSFET with guaranteed avalanche energy available to simplify surge absorber circuits
- Protection functions: ▫ Brown-In and Brown-Out Protection function: auto-restart, prevention of excess input current and heat rise at low input voltage ▫ Overcurrent Protection function (OCP): pulse-by-pulse built-in compensation circuit to minimize OCP point variation on AC input voltage ▫ Overload Protection function (OLP): auto-restart, built-in timer, reduces heat during overload condition, and no external components required ▫ Overvoltage Protection function (OVP): latched shutdown ▫ Thermal Shutdown Protection function (TSD): shutdown latches device off to prevent continuous oscillation
برای مشاهده سایر آی سی های کاربردی در تغذیه های سوئیچینگ به لینک زیر مراجعه نمایید:
انواع آی سی کاربردی در تغذیه های سوئیچینگ
برای دریافت دیتاشیت آی سی A6052 می توانید به نوار دیتاشیت محصول مراجعه نمایید
برای خرید آی سی A6052 به صورت اینترنتی می توانید از همین صفحه اقدام نمایید.
